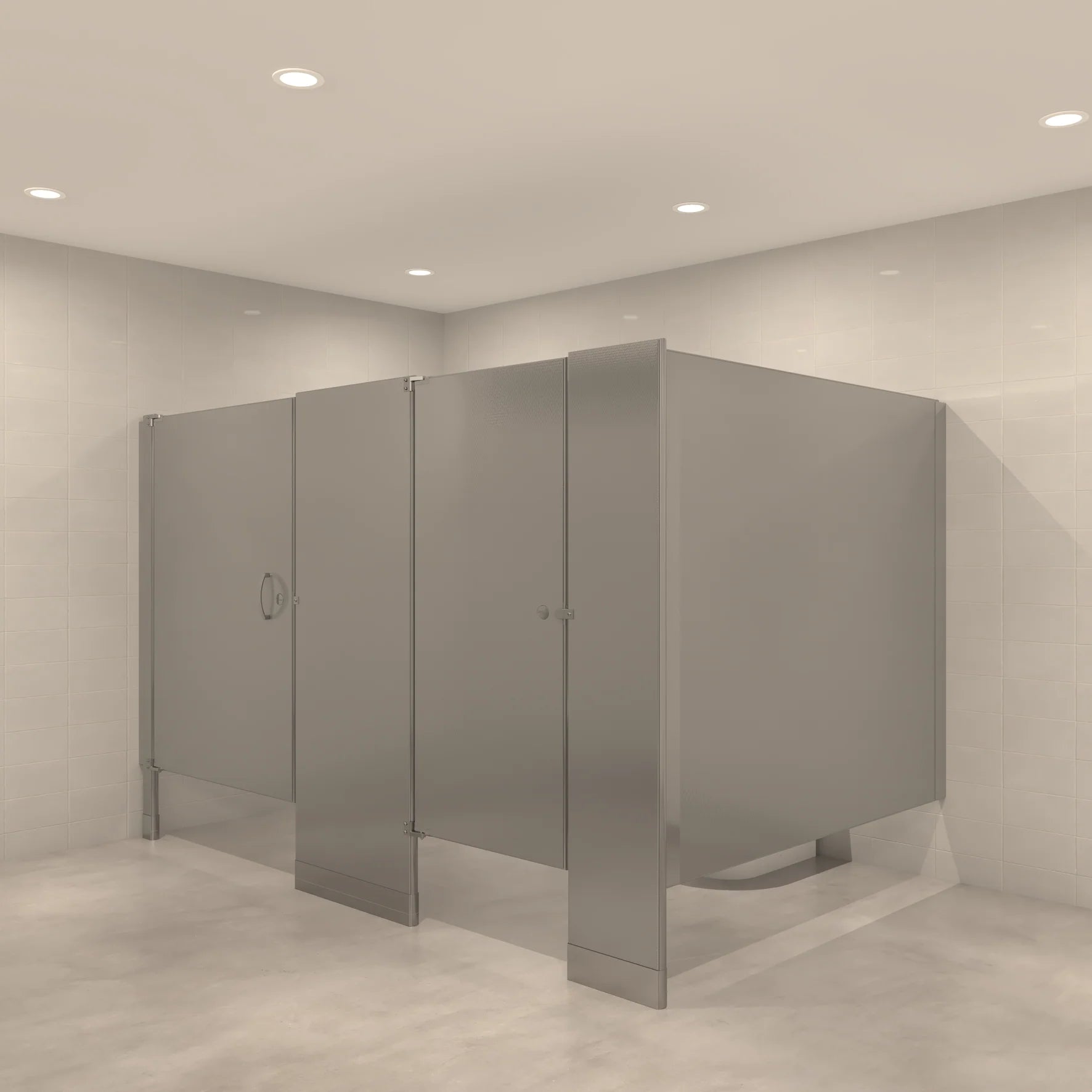

Floor-mounted toilet partitions are the preferred choice for commercial restrooms built on concrete floors. This style of commercial restroom partitions provides a uniform appearance, with doors, pilasters, and panels all at the same height. Additionally, the design and construction of floor-mounted partitions make them easy to install.
This mounting style features 70-inch pilasters that align flush across the top with the doors and panels. This style requires 3/8 to 5/8-inch floor bolts to ensure stability.
Floor-mounted partitions are ideal for bathrooms with low ceilings due to their simple and aesthetically pleasing design. They should be installed on concrete floors with a penetration of only 2 inches. However, they are not suitable for bathroom stalls narrower than 30 inches, as larger pilasters are required at the ends of the panels. This type of partition is also not recommended for areas with high vandalism and heavy traffic.
Floor-mounted partitions can be configured to meet ADA compliance requirements when properly spaced and installed. Our in-house partition specialists work with industry-leading manufacturers, including Hadrian, Bradley, ASI Global, Metpar, and PSISC, to ensure your commercial restroom partition system meets both code requirements and your design specifications.
Ready to start your commercial restroom partition project? Fill out our Toilet Partitions Quote Form and one of our partition experts will follow up with a custom estimate.
Floor Mounted Toilet Partitions
FAQs About Floor-Mounted Toilet Partitions
Floor-mounted toilet partitions feature 70-inch pilasters, with doors and panels aligned flush at the top. Standard stall door clearance is approximately 12 inches from the floor. ADA-compliant configurations require specific stall widths and turning clearances, which Access Pro Supply's in-house partition specialists can help you plan and meet.
Yes, floor-mounted toilet partitions can be configured to meet ADA requirements. Compliant stalls require a minimum interior width of 60 inches and appropriate grab bar placement at specified heights. Access Pro Supply's partition specialists help you select the right configuration, materials, and dimensions to ensure your restroom meets federal accessibility standards.
Floor-mounted toilet partitions are designed for concrete floors, requiring a bolt penetration of only 2 inches. They are not recommended for raised or soft flooring substrates. For tile or finished surfaces over concrete, the appropriate anchoring hardware ensures a stable, long-lasting installation throughout the life of the partition system.
