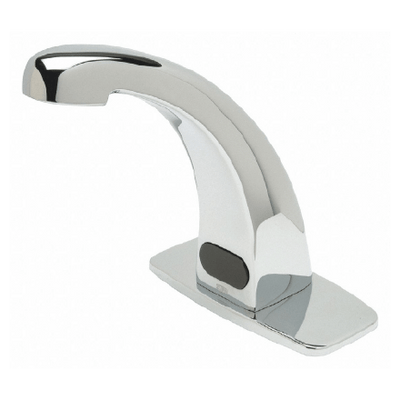

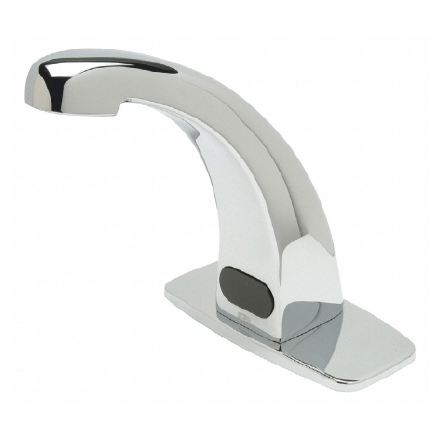

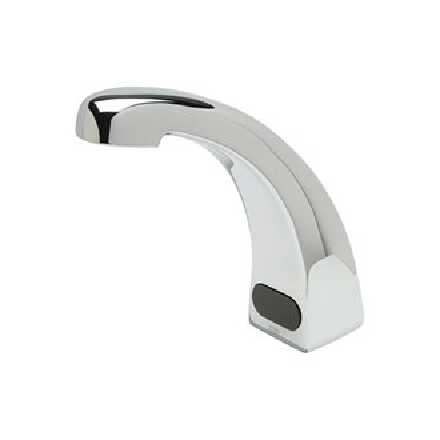

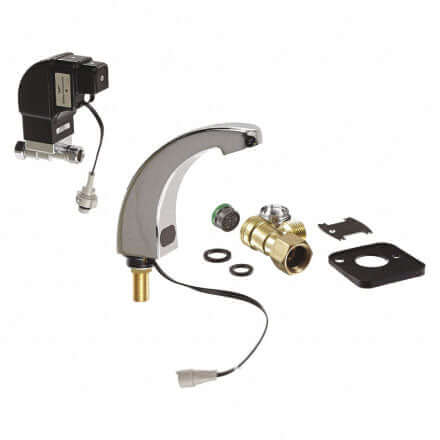

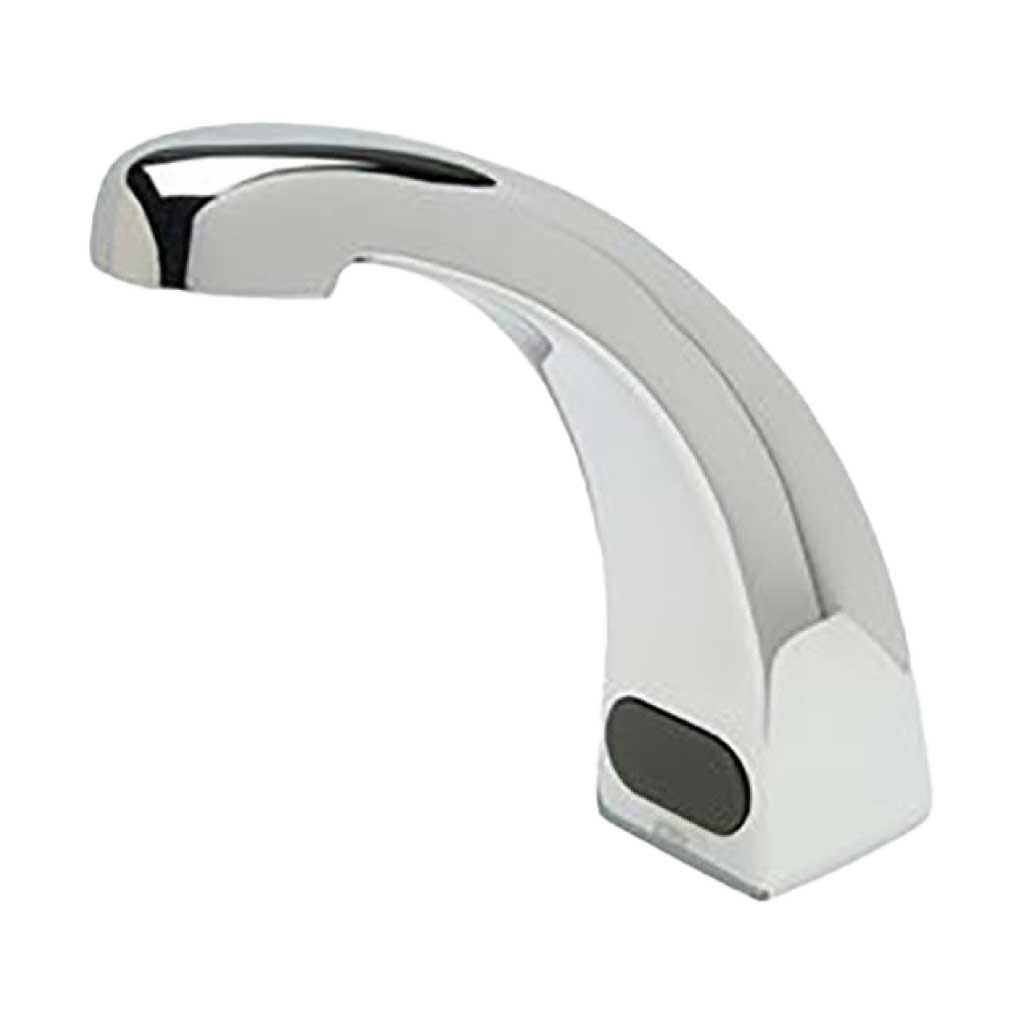

Zurn AquaSense Battery-Powered Sensor Faucet - Z6913-XL Series

Zurn AquaSense Battery-Powered Sensor Faucet - Z6913-XL Series

Architectural & Engineering Specification
Zurn AquaSense® faucets are ideal for high-use
applications where durability and hands-free operation
are necessary. ADA compliant, battery-powered, polished
chrome-plated cast brass sensor faucet with infrared
proximity sensor for retrofit and new construction. Unit is
furnished with a standard 0.5 GPM aerator and mounting
hardware.

Product Features
• Infrared convergence-type proximity sensor
• 30-second time out feature
• Chrome-plated, cast brass body
• In-line filter
• 4 “AA” batteries
• Inlet for a 1/2” ball riser


Suffix Options
-ADM Above-deck mixer
-ADM-1 Above-deck mixer with 4” cover plate
-ADM-2 Above-deck mixer with 8” cover plate

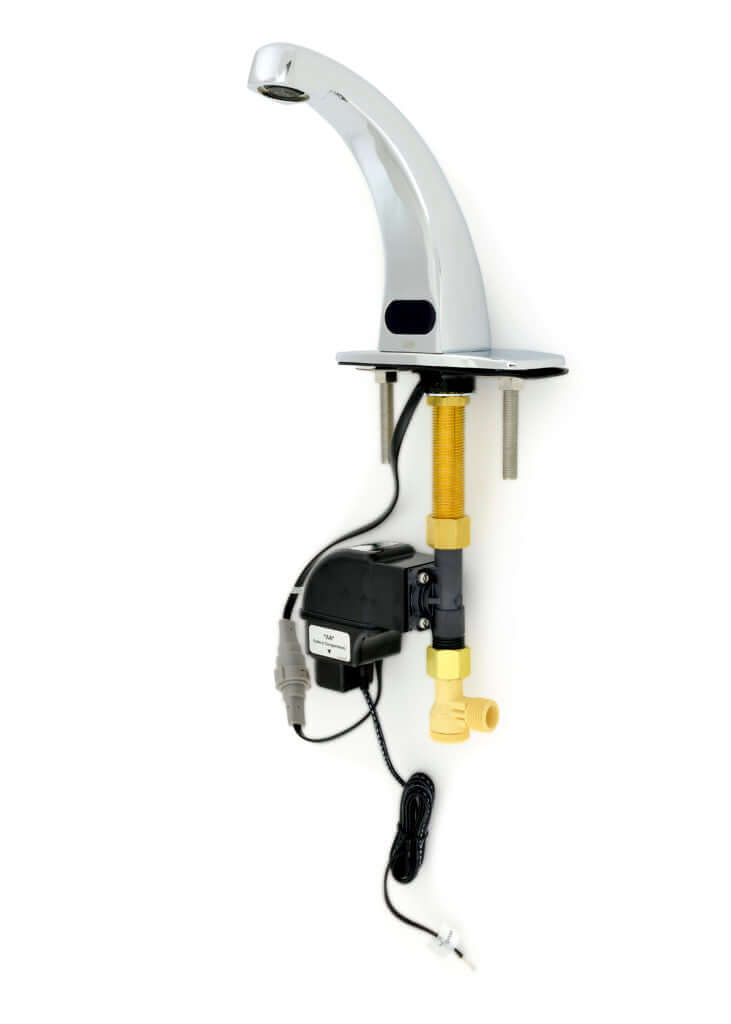

-CP4 Cover plate with 4” [102-mm] centers

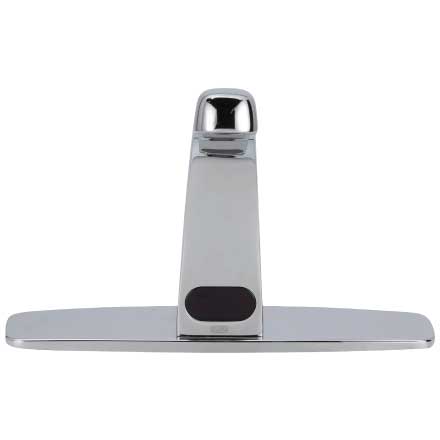

-CP8 Cover plate with 8” [203-mm] centers
-H4 Wrist blade handle for above-deck mixer

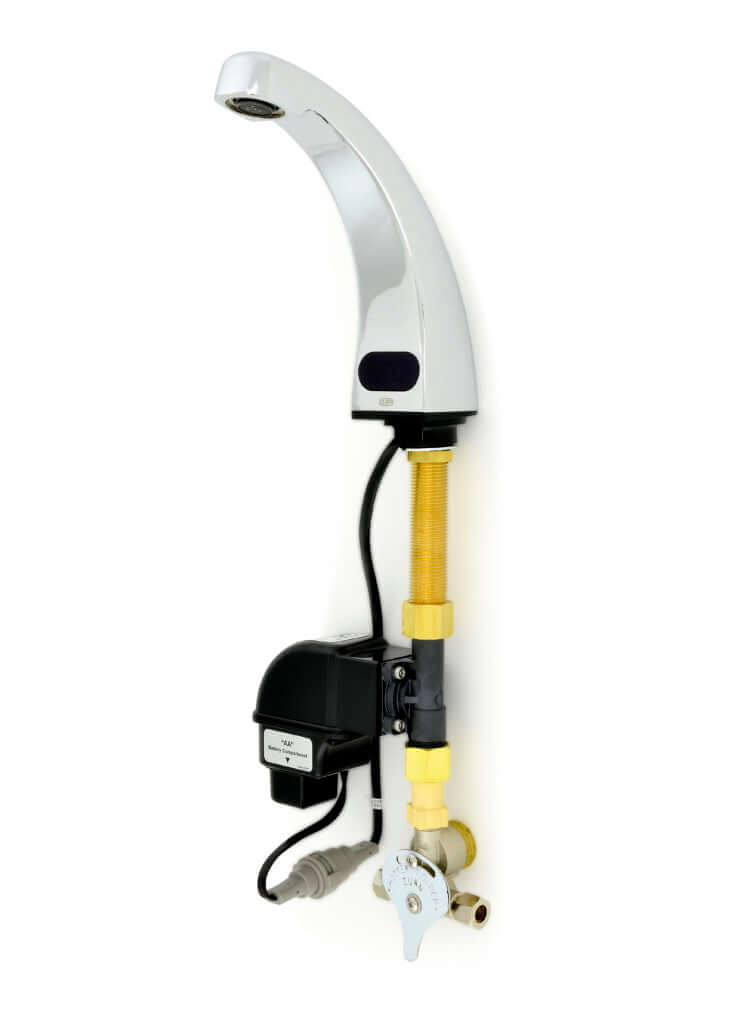

-MV Temperature mixing valve
-SH Supply hoses for mixing valve
-TMV-1 Thermostatic mixing valve for single faucets
